Submersible Liquid Level Pressure Transmitter YLY328

  • 1
  • 2

Brand Name : Yunyi

Model Number : YLY328

Certification : CE，ROHS

Place of Origin : China

MOQ : 1pc

Price : $43.3~$59.3/p

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 200PCS/week

Delivery Time : 7 days

Packaging Details : Carton box

Item : Wastewater Level Sensor Submersible Level Transducer Submersible Level Transmitters

pressure medium : liquid compatible stainless steel

pressure ranges : 0~0.5m~1 m H2O...300 m H2O

Accuracy : 0.5% F.S.

compensated temperature range : -10~70°c

Material : 304SS /316L stainless steel diaphragm

Level grade : IP67

cable : PU, PE or PVC FEP cable lengths

Contact Now

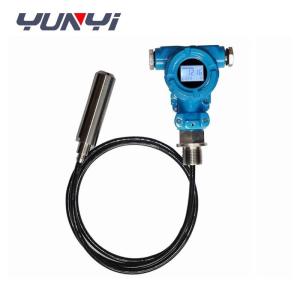

YLY328 submersible liquid level pressure transmitter

YLT328 is a fully submersible level transducer with display suitable for liquid level and depth measurement.It consists of the U.S.A imported CE piezoresisve sensing element encased in a 316 SS housing. Its all stainless steel, hermetically sealed housing make it suitable for immersion for a long time in most industrial liquids and oils.


This product has the advantages of small volume, convenient use and installation, directly put into the water, that can measure liquid height from the surface to the end of the liquid level transmitter.

Specification YLY328 submersible liquid level pressure transmitter

pressure medium liquid compatible stainless steel
pressure ranges 0~0.5m~1 m H2O...300 m H2O
overload pressure 150%FS
output signal 4~20mA, 0.4 ~4.5V, 0~5V
accuracy 0.1%FS,0.25%FS,0.5%FS (standard)
load resistance RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
long term stability 0.2%FS/year
supply voltage 10~36VDC
compensated temperature range -10~70°c
operating temperature range -20~85°c
storage temperature range -40~125°c
temperature coefficient of zero ±0.015%FS/°c@25°c
temperature coefficient of span ±0.02%FS/°c@25°c
insulation resistance 100MΩ@ 500VDC
Pressure connection screw thread, throw-in type
Protection grade IP68
material of wetted part and housing 304SS or 316L
material of pressure membrane 316L
Response time 1ms

Application:

  • Irrigation Equipment
  • Ambient Temperature: 25℃ (unless specified)
  • Sea Water Level Measurement and Control
  • Deep Well and Groundwater Monitoring
  • Vessel and Storage Monitor Systems
  • Control of Lift and Pumping Stations
  • Surface Water Monitoring
  • Deep watering
